Direct B2B manufacturer · electrosurgical interconnect solutions since 2008

Hospital-Grade ESU Grounding Pads & Autoclavable Bipolar Cables

Direct factory supply for OR teams, medical distributors and BMETs. Universal REM split grounding pads plus 79 autoclavable bipolar cable models matching Valleylab, Erbe, ConMed and BOWA generators.

✓REM/CQM-ready return path with split-pad options
✓79 bipolar cable SKUs across 20+ ecosystems
✓3.0 m standard / 5.0 m option for cable programs
✓MOQ 10 pcs with compatibility review support

79 Cable SKUs

Bipolar platform

Dual-Foil REM

CQM safety · <50 Ω

134°C × 50

Autoclave target

MOQ from 10 Pcs

Flexible trial

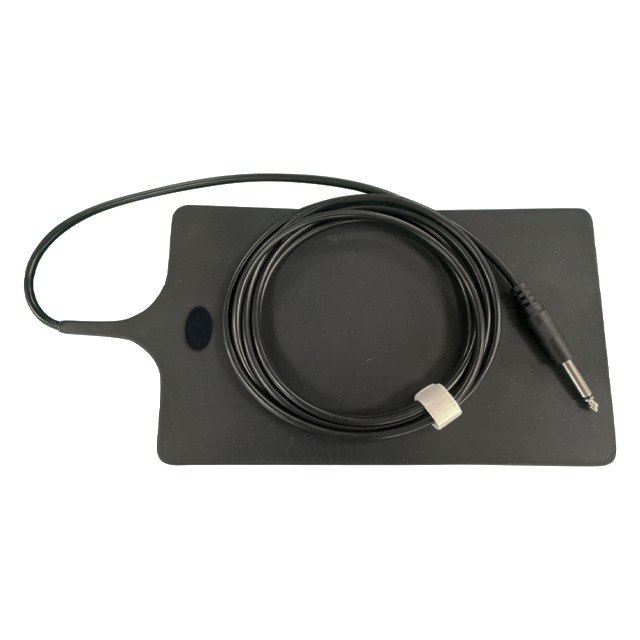

Reusable silicone patient plate
Engineering schematic
Conductive silicone matrixFlexible 4.5 mm body
High-flex shielded lead3.0 m standard
Widened molded SR bootOvermoulded protection
Dual 4.0 mm safety plugsSeparated connectors
134°C autoclave target · 50 cycles3000 V AC · ≥10,000 flex cycles

Concept schematic for engineering communication; final specifications follow the approved SKU file.

Core self-manufactured systems

Two Product Systems, Separated by Clinical Function

Patient return products complete the monopolar current path. Bipolar cables connect the generator directly to bipolar forceps. Each system now has its own selection logic.

System A · monopolar return pathPads + dedicated leads

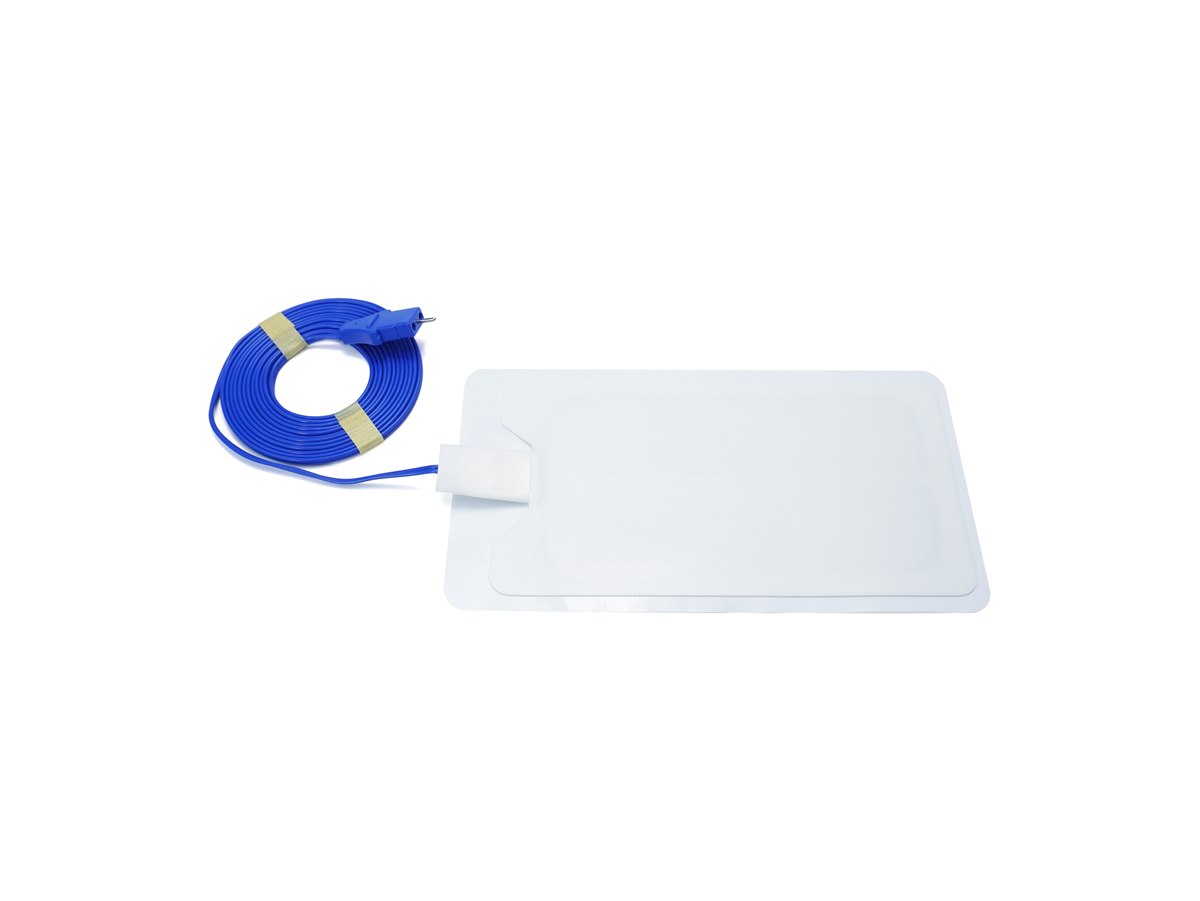

Grounding Pads & Dedicated Return Cables

Qualify the patient plate and generator-side return lead as one system. Choose disposable REM hydrogel, integrated-cable or reusable silicone formats before matching the generator port.

Grounding Pads

Lead length

3.0 m / 5.0 m

Primary interfaces

Valleylab · Erbe · BOWA

Selection matrix

Pad Type → Return Lead → Generator Port

SKUProduct / interfaceKey specificationUse case
CP1008Dual-foil REM hydrogel pad160 × 200 mmAdult monitored return path
CP1020Integrated lead REM pad3.0 m moulded cableNo external plate clamp
CP1013Reusable silicone plate150 × 250 × 4.5 mmWashable reusable workflow
CP1004 / CP1005REM 2-pin → plate clamp3.0 m standardValleylab / ConMed
CPB305 SeriesDedicated port → plate clamp3.0 m / 5.0 mErbe / BOWA systems
CPA307Aaron port → plate clamp1250 / 2250 / 3250Bovie-Aaron systems

Qualification input

Send the generator model, return-port photo, required plate type and current OEM reference. We will review the complete pad-and-lead path before sampling.

System B · bipolar instrument path79 cable SKUs

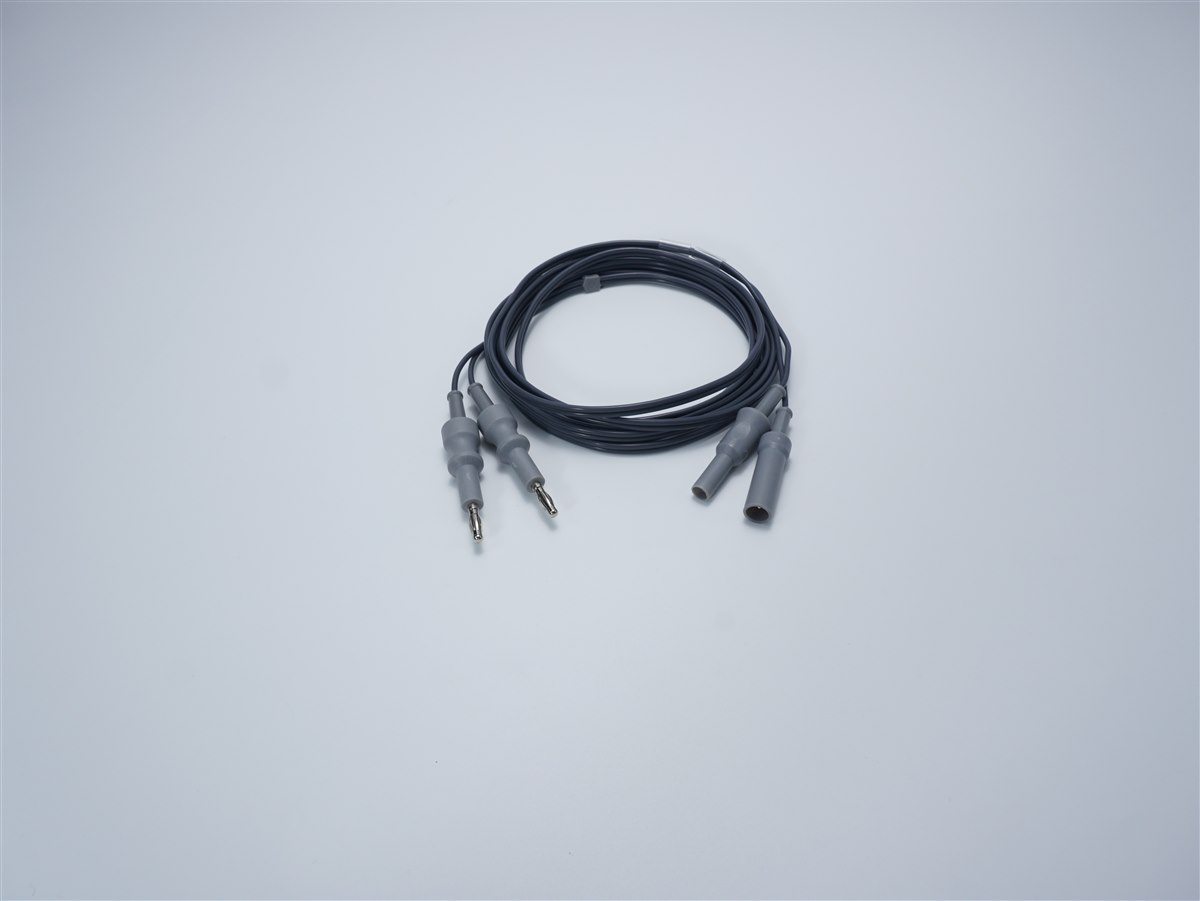

Autoclavable Bipolar Forceps Cables

Match both ends: generator output first, then the forceps or endoscopic instrument connector. Medical silicone cable bodies support repeated handling and steam-reprocessing programs.

Dielectric design

3000 V AC

HF leakage target

<10 mA

Steam target

134°C × 50

Length options

3.0 / 4.0 / 5.0 m

Representative selection matrix

Generator Plug → Instrument Connector

SKUGenerator sideInstrument sideTypical ecosystem
CPD3162 × 4.0 mm bananaEuro 2-pin flatUS standard / Erbe ICC / ConMed
CP1002US standard dual plugEuro 2-pin flatValleylab / ConMed / Erbe ICC
CP1003Euro dedicated dual pinEuro 2-pin flatAesculap / Martin / Berchtold
CP1024 / CP1025Dedicated / coaxialEuro / AesculapErbe VIO / BOWA / Wolf
CP1029BOWA / Lamidey interfaceOlympus dedicatedEndoscopic electrosurgery
CP1018AKarl Storz multi-pinEuro 2-pin socketKarl Storz UH801 series

Do not select by brand name alone

Port geometry can vary within one generator family. Use the Bipolar Cable Hub for a candidate SKU, then confirm with port photos and a sample.

Bipolar cable selection only

Bipolar Cable Compatibility Hub

Choose the generator ecosystem, then the forceps or instrument-side connector. The selector returns one candidate bipolar cable for engineering review and sample confirmation.

Live SKU mapping engine
Step 01

Generator Ecosystem

1
Step 02

Forceps Interface

2
Candidate mapping

CPD316

Universal Euro Bipolar Cable

Generator side

2 × 4.0 mm banana bipolar output

Instrument side

Euro 2-pin flat forceps socket

Length

3.0 m

Use class

Reusable · 134°C

Compatibility names identify connector ecosystems only. No affiliation or endorsement is implied.

Consolidated B2B ordering

Operating Room Consumables — Complementary Supply

Consolidate routine OR accessories with your grounding-pad or cable shipment. Flexible MOQ, one PO for inspection and documentation, and fewer split international shipments for distributor replenishment orders.

Optional add-on

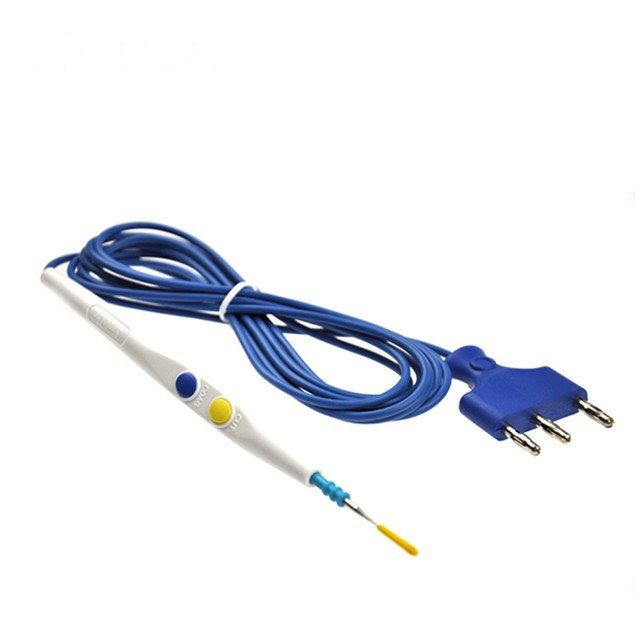

ESU Pencils · CP1001 Series

Cut/coag dual push buttons, φ2.36 mm anti-rotation electrode socket, 70 mm blade and standard 3-prong plug. CP1001 is supplied in an EO-sterile peel pouch.

Optional add-on

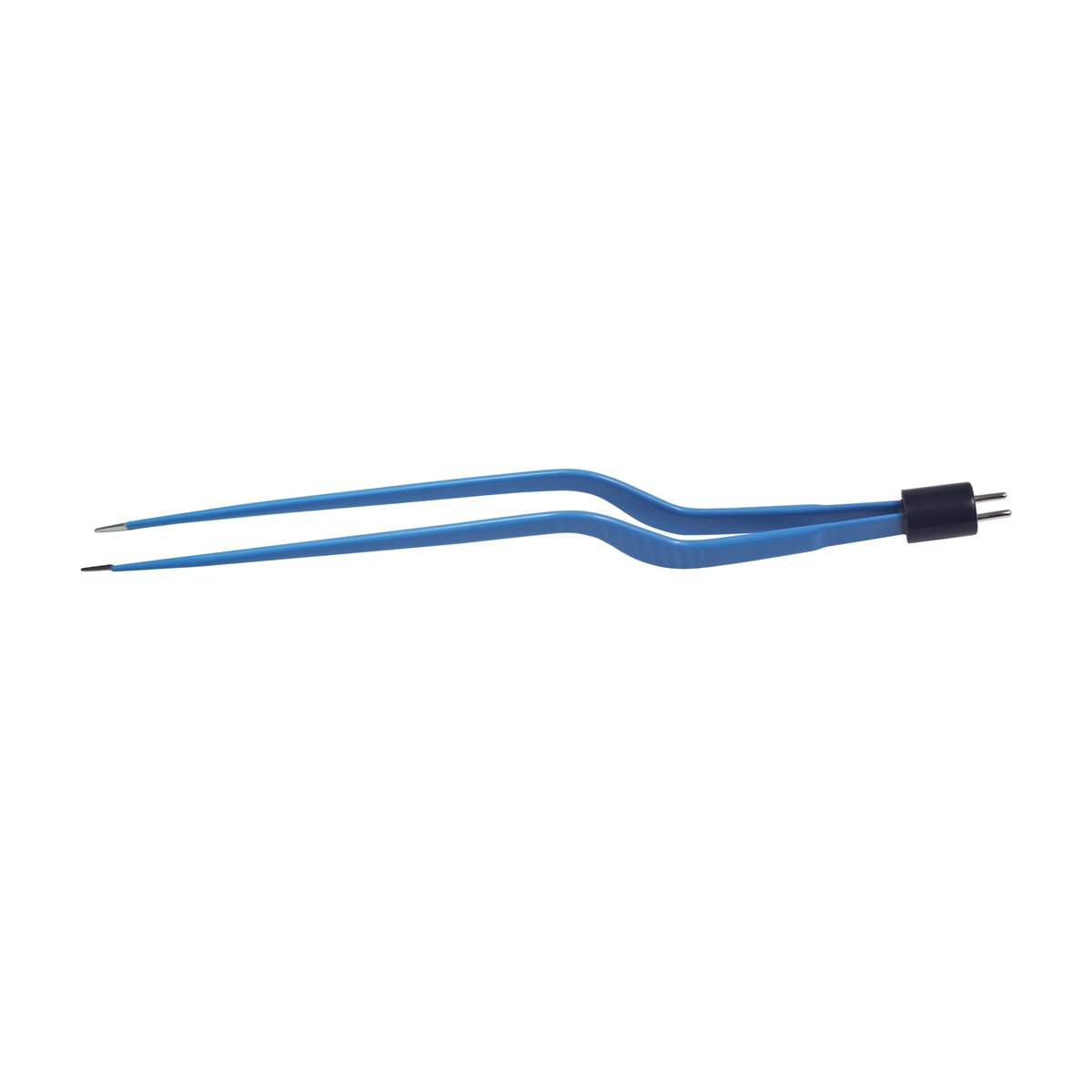

Bipolar Forceps · Euro / US

Euro and US interfaces in straight or bayonet patterns from 11.5–24 cm. Insulated shafts support 3000 V qualification; PTFE or silver non-stick tips are optional.

Optional add-on

ESU Adapters · CPD001–CPD013

Thirteen cross-brand port converters for mixed-generator fleets. CPD001 combines a banana plug with a keyed flat-pin receptacle; final fit is verified by port geometry.

Quality control, testing & compliance

Measured Criteria for Supplier Qualification

Review the production environment, lot-level inspection capability and controlled test targets. Final evidence is supplied by approved SKU and destination market.

≥10,000

90° Flex Cycles

Strain-relief and conductor endurance criterion.

i

Regulatory & Compliance Notice

ESU accessories and interconnect assemblies are manufactured under an ISO 13485:2016 certified quality management system for qualified clinical, OEM and hospital distribution partners. Detailed technical files, IEC test reports and destination-market compliance documentation are available upon request per SKU.

B2B compatibility RFQ portal

Get a Port-Matched Quote

Send the generator model, port photo, current cable reference and target quantity. Engineering review precedes sample confirmation.

✓Compatibility review within 24–48 hours
✓MOQ from 10 pcs for reusable cables
✓12-month reusable product warranty
