TÜV SÜD ISO 13485:2016 Certified DIN 42802 1.5mm Touchproof Safety Standard Ultra-Low Baseline Drift (< 3 mV DC Offset) International 10/20 Standard 10-Color Coding
DIRECT B2B MANUFACTURER · CLINICAL NEUROPHYSIOLOGY ACCESSORIES SINCE 2008

Medical-Grade EEG Cables & ElectrodesUltra-Low Noise Microvolt (μV) Signal Acquisition

Precision engineered for Routine EEG, ICU cEEG, Polysomnography (PSG), and Long-Term Epilepsy Monitoring (LTM). 100% physically and electrically compatible with Natus, Nihon Kohden, Cadwell, and Compumedics headboxes.

1.5mm DIN 42802 Safety Socket: Universal fit
Three Noble Metals: Ag/AgCl, Gold, 99.9% Silver
Twin Standard Leads: 4.0mm Snap & Ergonomic Pinch
Specialty Jumpers: Pin Adapters & Insulated Alligator
17+ Years
Medical Cable R&D
4,000 sqm
ISO 13485 Cleanroom
< 3 kΩ
Ultra-Low Contact Impedance
100+ Countries
Global B2B Supply
Clinical Engineering Schematic

Precision EEG Cup & DIN 42802 Assembly

100% Continuity Tested
1.5mm DIN 42802 SocketMedical TPU JacketImpedance < 3 kΩ (Φ10mm)
Contact Impedance< 3 kΩ Target
DC Offset Drift< 3 mV Baseline
Flexing Endurance> 20,000 Cycles
Headbox Standard: DIN 42802 1.5mm
Clinical Engineering Interoperability Matrix

Compatible Headboxes & Amplifiers by Brand

All Medke EEG electrodes and leadwires feature standard 1.5 mm DIN 42802 touchproof safety sockets. Click “Get Quote ⚡” to auto-fill the inquiry form for your department.

Host System & ManufacturerCompatible Input Box / HeadboxTerminal StandardRecommended Medke ProductClinical AdvantageInstant Action
Natus / NicoletNicoletOne v32/v44 Headbox, BrainWave, UltraPro S1001.5mm DIN 42802Casted Ag/AgCl & Golden10-Color CodedNear-zero baseline drift (<3mV), ideal for pediatric EMU & ICU cEEG.
Natus / GrassGrass Comet-PLUS, Beehive Horizon, Telefactor 32/641.5mm DIN 42802Golden Cup (E0001-B)10-Color WireHigh corrosion resistance against abrasive prep gels; reusable.
Nihon KohdenNeurofax EEG-1200, EEG-9100, EEG-9200, JE-921A Junction Box1.5mm DIN 4280299.9% Pure Silver & AgClHigh-ConductivityFast signal settling time for evoked potential and routine EEG.
CadwellEasy III EEG/PSG Amplifier, Arc Premier, Cadwell IOM Box1.5mm DIN 42802Snap & Pinch Dual Leads4.0mm Press-StudSeamless pairing with disposable adhesive hydrogel sensor pads.
CompumedicsGrael 4K EEG, Somte PSG, Siesta 802, Neuvo LTM System1.5mm DIN 42802Ag/AgCl Reversible CupsAlligator Clip LeadsZero motion polarization in 8-12 hour whole-night sleep studies.
Philips HealthcareAlice 5 & Alice 6 Sleepware, IntelliVue EEG Module1.5mm DIN 42802Pediatric Golden (E0001-O)Soft Pink TPUGentle soft wire jacket; minimizes child anxiety and motion artifacts.
* Universal DIN 42802 compatibility across EBNeuro, Micromed, Bio-logic, and Brain Products systems.Request Custom Headbox Pinout Match →

Medke Clinical EEG Electrodes & Leadwire Portfolio

Six standardized medical-grade product categories strictly verified against Medke corporate specifications (MEDKE-KB-PROD-EEG-001). 100% physically and electrically compatible with global standard 1.5mm DIN 42802 headboxes.

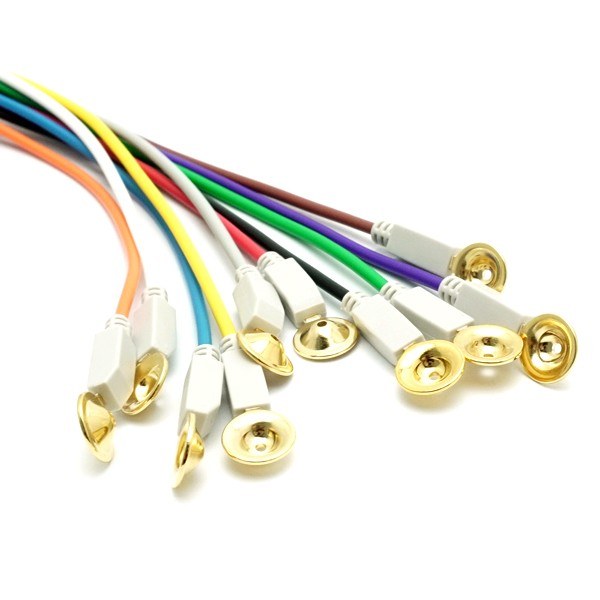

Casted Golden Cup Electrodes (4 Styles)4 Tail / Wire StylesΦ10.0mm / 2mm Gel Hole
Noble Metal Cup • EA11511A / E0001Pull Force ≥ 50 N

Casted Golden Cup Electrodes (4 Styles)

Precision gravity-cast medical brass disc with multi-layer micro-gold plating and molded relief tail. Exceptional chemical resistance against >100 repeated medical alcohol wipe-downs and abrasive skin prep gels. Single-pole contact impedance < 3 kΩ.

4 Clinical Tail & Color Configurations:
Style 1 (E0001): All-gray TPU wire & DIN plug (hospital fleet)
Style 2 (E0001-B): 10-Color international standard rainbow wire
Style 3 (E0001-O): Pediatric soft pink wire (calming for NICU/children)
Style 4 (E0001-N): Mid-gray wire + 10-color molded DIN plugs (ICU blind-plug)
• Standard: 1.5m, 10 pcs/set
• Socket: 1.5mm DIN 42802

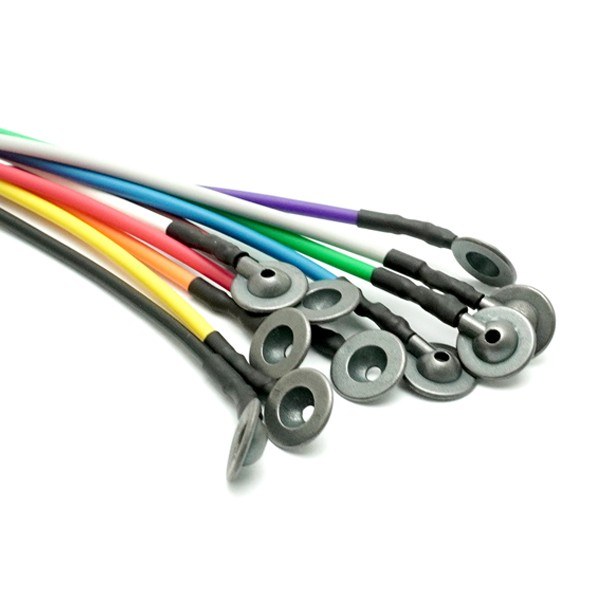

Casted Ag/AgCl Cup ElectrodesClinical Reference StandardDC Offset < 3 mV
Reversible Half-Cell • EA11521JZero Polarization

Casted Ag/AgCl Cup Electrodes

Reversible silver/silver chloride electrochemical electrode pair with electrochemically deposited stable AgCl micro-layer. Recognized as the clinical reference standard for minimal half-cell polarization and baseline drift in continuous recordings.

Core Clinical Advantages:
< 3 mV DC Offset Drift: Rock-solid baseline across 24~72h continuous EMU/LTM
Artifact Suppression: High SNR ratio rejects body movement and rolling noise
Microvolt Slow-Wave Recording: Captures δ-wave and deep sleep slow potentials
Polyolefin Relief Tail: Dual-layer heat-shrink strain buffer for durability
• Wire: 10-Color Medical TPU
• Socket: 1.5mm DIN 42802

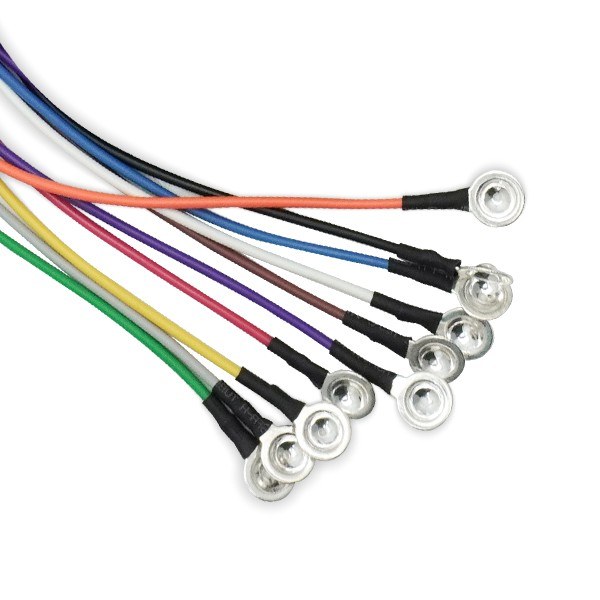

Casted Pure Silver Cup Electrodes99.9% Pure Silver63 × 10⁶ S/m
High Conductivity • EA11521ARapid Stabilization

Casted Pure Silver Cup Electrodes

99.9% high-purity cast pure silver disc (Φ10.0mm, 2.0mm gel hole) with multi-stage mirror-polished concave surface. Delivers fast impedance drop and high-frequency transient bio-signal response in routine clinical diagnostics and evoked potential studies.

Core Clinical Advantages:
Evoked Potentials (EP): Sensitive response for BAEP, VEP, and SEP transient spikes
Rapid Outpatient Exams: Fast stabilization in 20~30 min routine screening
Cost-Effective Durability: Reusable with clinical regeneration/polishing support
Heat-shrink Stress Relief: High-durability black sleeve resists hot-air drying
• Wire: 10-Color Medical TPU
• Socket: 1.5mm DIN 42802

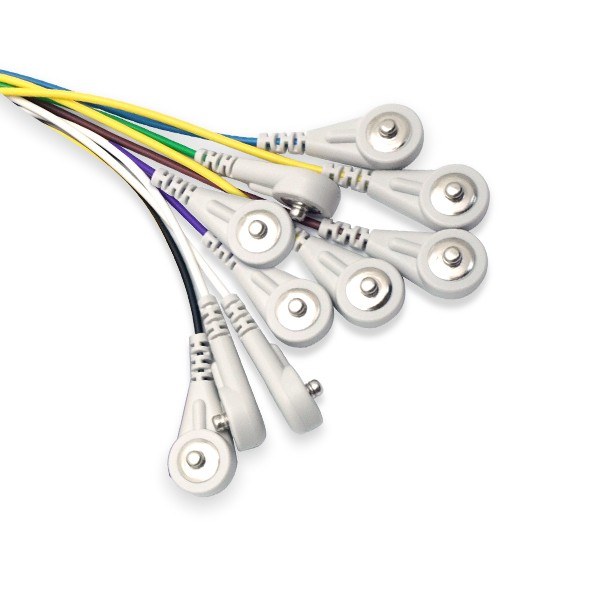

Medke 4.0mm Snap EEG LeadwiresOption A: 4.0mm Snap
Medke Pinch Grabber EEG LeadwiresOption B: Pinch / Grabber
Dual Standard Terminations
Standard Leads • EA11562A / EA11511HZero Cross-Infection

Standard Snap & Pinch Dual-Option Leadwires

Two interchangeable international standard terminations designed for disposable pre-gelled hydrogel sensors. Choose 4.0mm Press-Stud Snap for rapid ICU click-on infection control, or Dual-Action Ergonomic Pinch (Grabber) for universal grip on flat tab and stud electrodes.

Option A • Snap Leads (EA11562A):

4.0mm female socket with phosphor bronze retention ring & 3-step flex relief ribs (>20,000 cycles). Disposable hydrogel match for ICU cEEG, sleep EOG/EMG.

Option B • Pinch Leads (EA11511H):

Ergonomic thumb-press dual-claw clamp with heavy-duty spring. Firmly locks 4.0mm studs and flat tab electrodes; resists lateral pull in restless/elderly patients.

• Resistance: < 0.1 Ω contact
• Socket: 1.5mm DIN 42802

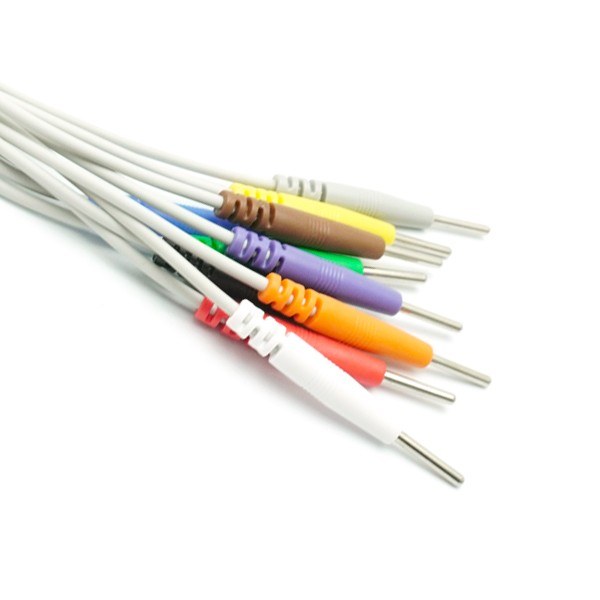

Pin / Needle Plug Adapter Jumper Leads100% Non-Invasive JumperΦ1.5mm / Φ2.0mm Pin
Electrical Interconnect • EA11521DNon-Subdermal

Pin / Needle Plug Adapter Jumper Leads

Non-invasive cylindrical pin plug adapter jumpers (Touchproof to Pin Adapter Leads). Strictly designed for electrical interconnection between standard 1.5mm DIN 42802 headbox sockets and pin-style terminals. Absolute clarification: Non-invasive surface interconnect, NOT subdermal needles.

Core Clinical Jumper Functions:
Electrode Cap Jumpers: Connects cap pin sockets to amplifier headboxes
Signal Cascading: Bridges non-standard terminal strips to DIN 42802 ports
Legacy Equipment Retrofit: Maintenance adapter for legacy EEG hardware
Aramid Fiber Core: Kevlar-reinforced conductor prevents pull-off breakage
• Wire: 10-Color Medical TPU
• Terminals: Φ1.5/2.0mm Pin to DIN

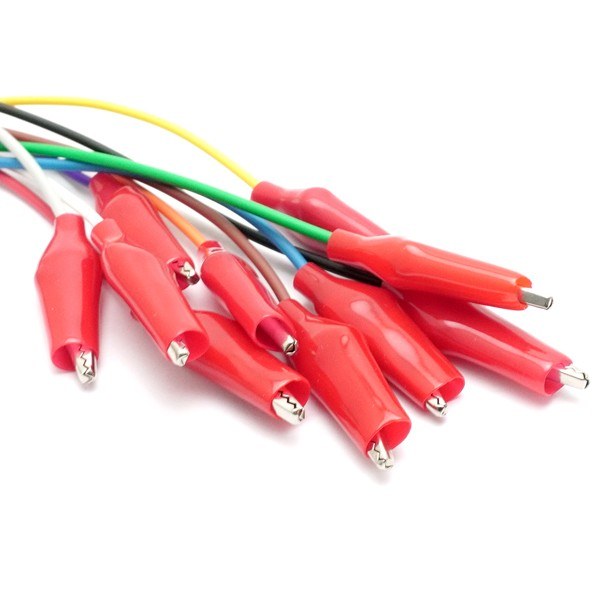

Alligator Clip Leads with Red Insulated BootAnti-Short Red Silicone Boot1.5mm DIN Socket
Safety Insulated Clip • EA11581ANo Crosstalk

Alligator Clip Leads with Red Insulated Boot

Precision spring-loaded alligator clip encased in a high-toughness red silicone insulating boot that fully encloses the spring and body, leaving only miniature serrated jaws exposed. Eliminates adjacent channel short-circuiting in high-density scalp montages.

Safety Engineering Highlights:
Anti-Short Circuit Boot: Prevents contact shorts in 1~2 cm dense scalp spacing
Eliminates Crosstalk: Blocks stray parasitic capacitance and leakage currents
Earlobe Reference Clamps: Firm grip for A1/A2 mastoid and ground reference
Precision Serrated Jaws: Secure retention without severing thin tab sensors
• Wire: 10-Color Medical TPU
• Socket: 1.5mm DIN 42802
Uncompromised Medical Governance

Verifiable Medical Certifications & Quality Factory

We manufacture strictly under ISO 13485 QMS standards with complete audit trails, CE MDR certificates, and FDA clearances for smooth customs clearance worldwide.

TÜV SÜD✓ Active Valid

ISO 13485:2016

Q5 085432 0005 Rev. 05

Medical devices quality management system covering R&D, precision manufacturing, and cleanroom packaging of EEG cables & electrodes.

EU MDR Class I✓ EC REP Registered

EU MDR (2017/745) Class I

DE/CA09/01889/MDR

Class I conformity declaration under European Medical Device Regulation for non-invasive patient monitoring cable accessories and electrodes.

US FDA✓ Device Listed

FDA Establishment QSR

FEI / Reg No: 3012891913

Compliant with US FDA Quality System Regulation (21 CFR Part 820) governing clinical patient monitoring cable assemblies.

IEC & ISO 10993✓ Biocompatible

IEC 60601-2-26 Safety

TR-EEG-BIO-2026-08

Compliant with electrical safety standards for electroencephalographs and ISO 10993 cytotoxicity, sensitization, and skin irritation limits.

Manufacturing Infrastructure

4,000 sqm Intelligent Factory in Shenzhen

Established in 2008 with 100+ skilled assembly technicians, Class 100,000 cleanroom workshops, automated extrusion lines, and precision welding workstations.

100%Kelvin Contact & Offset Testing
> 20,000Cycles Dynamic Flex Life
Class 100,000 Assembly
Cleanroom
Class 100,000 Assembly

Dust-free precision injection molding & terminal crimping lines

Electrical Reliability Lab
Testing Lab
Electrical Reliability Lab

Oscillating fatigue and high-voltage dielectric test rigs

Global Express Logistics
Warehouse
Global Express Logistics

DHL/FedEx express dispatches reaching Europe and Americas in 3-5 days

Direct B2B Procurement Portal

Request Factory Quotation & Free Evaluation Samples

Receive tiered wholesale pricing, technical engineering datasheets, and sample evaluation availability within 2.4 hours.

Strict Commercial Confidentiality & NDA ProtectionDirect Manufacturer Wholesale • Zero Middleman MarkupsOfficial RFQ Mailbox: contact@medke.com
Procurement FAQ

Frequently Asked Questions

Key details about MOQ, clinical evaluation samples, OEM tooling, and global export shipping.

Yes. All Medke EEG electrodes and leadwires strictly adhere to the international DIN 42802 standard with a 1.5 mm recessed touchproof safety socket. They plug and play directly into Natus (NicoletOne, Grass Comet), Nihon Kohden (Neurofax series), Cadwell (Easy III, Arc), Compumedics (Grael), and Philips input boxes without any intermediate adapters.
